Additional information
| Weight | 12 lbs |
|---|---|
| Dimensions | 13 × 5 × 5 in |
| Capacity | 100,000 lb |
Please login to make purchases.
IN-LINE TENSION LOAD CELL MALE THREAD 100,000 lbf -10 FT CABLE
Request QuoteSKU: ILDM-100K-2-A6-SS
$0.00 Request Quote
Products Details

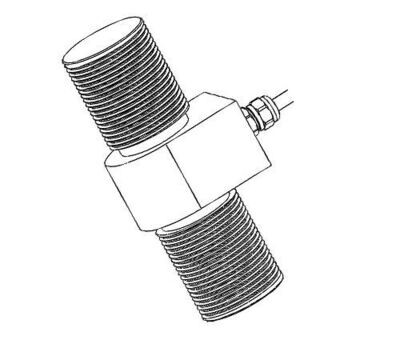

ILDM IN-LINE TENSION LOAD CELL MALE THREAD 5,000 — 50,000 lbf (larger capacities available on request)
10 FT INTEGRAL CABLE OPTION
This tension only load cell male threaded studs each end is an economical choice for measuring in-line tension forces. Best paired with a rod end connection to prevent extraneous forces.
These load cells are available from stock with either a cable gland/ 10 ft cable (part code –ILDM-XXK-2-6-SS) —or—with a 6 pin bayonet style connecter (Amphenol PT02A-10-6P—part code ILDM-XXK-2-A6-SS)
Available in capacities ranging from 5,000 lbf to 50,000 lbf from stock, we can offer up to 500,000 lbf—as a special order. These are a rugged and durable option for many applications, with IP67 ingress protection rating.
Rod ends are also available as an option for these from CMI.
SAFE OVERLOAD: 150% OF R.O.
RATED OUTPUT(R.O.): 2mV/V Nominal
COMPENSATED TEMP. RANGE : 60 to 160F
TEMP. EFFECT ON OUTPUT: 0.005% OF LOAD/ F
NON-LINEARITY: 0.25% OF R.O.
0.005% OF R.O./ F
350Ω NOMINAL
10 VDC
0.25% OF R.O.
0.1% OF R.O.
ZERO BALANCE: 1.0% OF R.O.
DEFLECTION INCHES: 0.005 @ R.O.
SAFE TEMP RANGE: -65 to 200F
MODEL CAPACITY
1 ILDM-30K 30,000(lbs)
10' 6 CONDUCTOR, COLOR CODED SHIELDED CABLE SUPPLIED
DEFLECTION INCHES: 0.005 @ R.O.
RATED OUTPUT(R.O.): 2mV/V Nominal
50,000(lbs)
